FOR SALE: HP-R3000 XR - NA UPS

HP R3000 XR - NA UPS (Uninterruptible Power Supply)

Compare to: Compaq R3000 XR - NA  (UPS)

The leading edge Compaq UPS R3000 XR Uninterruptible Power System features the industry's first 2U rackmount design, offering up to 2700 Watts of true power. This new rack-space saving design allows more support for critical rack mountable equipment. This product is a refresh of existing R3000 UPS, and brings unprecedented power density and innovative features to the proven Compaq ... Read more

Read more: http://shopper.cnet.com/power-equipment/compaq-ups-r3000-xr/4014-3055_9-30404048.html#info-8#ixzz0x20tl9zM
The leading edge Compaq UPS R3000 XR Uninterruptible Power System features the industry's first 2U rackmount design, offering up to 2700 Watts of true power. This new rack-space saving design allows more support for critical rack mountable equipment. This product is a refresh of existing R3000 UPS, and brings unprecedented power density and innovative features to the proven Compaq ... Read more

Read more: http://shopper.cnet.com/power-equipment/compaq-ups-r3000-xr/4014-3055_9-30404048.html#info-8#ixzz0x20tl9zM
The leading edge Compaq UPS R3000 XR Uninterruptible Power System features the industry's first 2U rackmount design, offering up to 2700 Watts of true power. This new rack-space saving design allows more support for critical rack mountable equipment. This product is a refresh of existing R3000 UPS, and brings unprecedented power density and innovative features to the proven Compaq ... Read more

Read more: http://shopper.cnet.com/power-equipment/compaq-ups-r3000-xr/4014-3055_9-30404048.html#info-8#ixzz0x20tl9zM
The leading edge Compaq UPS R3000 XR Uninterruptible Power System features the industry's first 2U rackmount design, offering up to 2700 Watts of true power. This new rack-space saving design allows more support for critical rack mountable equipment. This product is a refresh of existing R3000 UPS, and brings unprecedented power density and innovative features to the proven Compaq ... Read more

Read more: http://shopper.cnet.com/power-equipment/compaq-ups-r3000-xr/4014-3055_9-30404048.html#info-8#ixzz0x20tl9zM

Price: $1,000.  (Used)

Questions?  Want to buy?
Email:  R3000-XR-UPS@etrk.info

Please include: Name, Phone, and your E-mail address.

Please include your zip code for shipping / handling quote.

Description:

    The leading edge HP R3000 XR - NA — aka Compaq UPS R3000 XR Uninterruptible Power System features up to 2700 Watts of true power, rack mountable equipment.

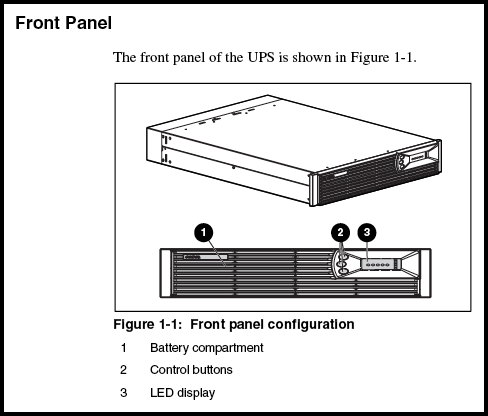

Figure 1: Front Panel, HP-R3000-XR-NA

http://www.hp-r3000.etrk.info/R3000-XR-NA-MANUAL000002087-01.jpg

..

Figure 2: Rear Panel, HP-R3000-XR-NA

http://www.hp-r3000.etrk.info/R3000-XR-NA-MANUAL000002087-02.jpg

..

  • Manufacturer: HP
  • Part number: 19217-001 (Compaq equivalent: 19218-002)
  • Description: The leading edge HP UPS R3000 XR — compare to Compaq UPS R3000 XR — Uninterruptible Power System features rackmount design, offering up to 2700 Watts of true power.  The "XR" models denote "eXtended Runtime Capable" UPS models.
  • General

  • Device Type UPS - Rack-mountable
  • Width 19 in
  • Depth 24.5 in
  • Height 3.5 in
  • Weight 81.6 lbs (nominal, net weight)
  • Localization English / Canada, United States
  • Power Device

  • Load Rating Small LAN / file server
  • Input Voltage Margin ± 20%
  • Frequency Required 60 Hz
  • Input Connector(s) 1 x Power NEMA L6-20
  • Output Voltage AC 200/208/220/230/240 V ± 5%
  • output connector(s) 10 x Power NEMA L6-20, Power IEC 320 EN 60320 C13
  • Power Output Connectors Details 1 x Power NEMA L6-20, 9 x Power IEC 320 EN 60320 C13
  • Power Provided 2.7 kW / 3000 VA
  • Surge Suppression Standard
  • Battery

  • Technology Lead acid
  • Recharge Time 3 hour(s)
  • Expansion / Connectivity

  • Connections 1 x Serial - RS-232 - 9 pin D-Sub (DB-9)
  • Miscellaneous

  • Rack Mounting Kit Included /Available
  • Equipment Protection Value 25000 US Dollars {see manufacturer}
  • Environmental Parameters

  • Min Operating Temperature 50 °F
  • Max Operating Temperature 104 °F
  • Min Storage Temperature -13 °F
  • Max Storage Temperature 131 °F
  • Humidity Range Operating 5 - 95%

..


UPS Model:
R3000 XR-NA

HP UPS R3000 XR-NA 192187-001 EO3007


Series: EO3007
P/N: 192187-001
S/N: TT053A2468

Domestic, low-voltage, rack-mountable UPS



UPS Features

The following features make the UPS versatile and easy to use:
• Industry-leading 2U design
• Modular design for reduced downtime and ease of battery replacement
• Communications port for data exchange with the host computer
• Support for power management software
• Support for hardware option cards
• Support for extended runtime modules (ERMs)
• Support for power distribution units (PDUs)
• Support for Remote Emergency Power Off (REPO)
• Power protection for loads up to 3000 VA/2700 W
• Load segment control


UPS Model:  R3000 XR-NA 50/60 120 100, 110
Voltage:  120, 127

Non-detachable power cord with
NEMA L5-30 plug



Download the Manual - PDF file  —  use Right-Click, Save-As...

http://www.hp-r3000.etrk.info/HP-R3000-XR-NA-MANUAL.pdf




Questions?  Want to buy?
Email:  R3000-XR-UPS@etrk.info

Please include: Name, Phone, and your E-mail address.

Please include your zip code for shipping / handling quote.






Any trademarks are the property of their respective owners.  Product information and specifications are from manufacturer's data.  Unit sold as-is, but has tested OK.
Location: Hayward, CA  94545.
